High-density analogue retention
Connect up to 32 supported analogue endpoints while moving call control to SIP.

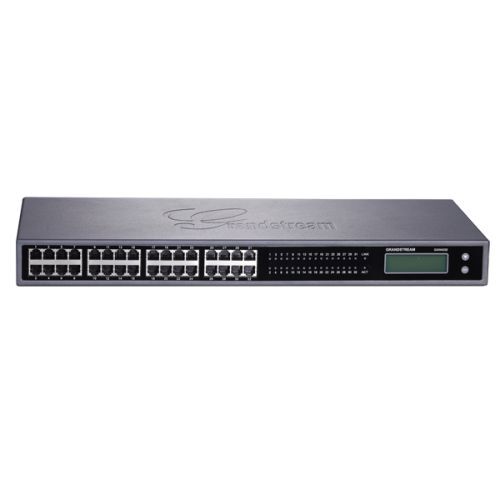

Grandstream GXW4232V2 32-Port FXS Analogue VoIP Gateway Version 2
RRP $1,928.60
48% OFF
Not sure what you need?
Read our complete guide.
Not sure what you need?
Read our complete guide.
RRP $1,928.60
48% OFF
Grandstream • SKU GXW4232V2
A 32-port high-density FXS gateway for retaining compatible analogue phones, fax machines and legacy PBX devices on a SIP network.
The GXW4232V2 is a 32-port version 2 high-density FXS gateway for building a hybrid SIP and analogue telephone environment. It provides 32 FXS ports; confirm RJ11/Telco patching against delivered stock, one Gigabit Ethernet port, four SIP server profiles, an independent SIP account per telephone port, T.38 fax and three-way conferencing per port. Version 2 adds Opus and G.722 wideband audio, secure boot, a unique device certificate, random default password and dual firmware images.
Quick answer: Choose GXW4232V2 when the project must connect 32 analogue phones or fax devices as FXS extensions to a compatible SIP platform. Do not use it for incoming PSTN/FXO trunk lines.
Connect up to 32 supported analogue endpoints while moving call control to SIP.
Use an independent SIP account per FXS port across four server profiles.
Deploy the 1U gateway with Gigabit Ethernet, wideband codecs and stronger security.
A quick fit check for Australian businesses comparing equipment for users, rooms, sites or wider projects.
| Exact model | GXW4232V2 |
|---|---|
| Generation | GXW4200 v2 |
| FXS capacity | 32 ports |
| Telephone connectors | 32 FXS ports; confirm RJ11/Telco patching against delivered stock |
| Network | 1 × 10/100/1000 Mbps Gigabit RJ45 |
| Power | 12V DC/5A, maximum 60W |
It connects up to 32 compatible analogue phones, fax machines or PBX devices as FXS extensions to a SIP network.
No. It provides FXS ports for analogue endpoints. Use an FXO gateway for incoming analogue trunk lines.
It supports four SIP server profiles with an independent SIP account for each telephone port.
Yes. It has one auto-sensing 10/100/1000 Mbps RJ45 network port.
Yes. It supports T.38 Fax-over-IP and G.711 fax pass-through, subject to end-to-end compatibility.
Grandstream lists simultaneous three-way voice conferencing per port.
Version 2 adds Opus and G.722 wideband audio plus secure boot, a unique device certificate, random default password and dual firmware images.
Yes. Provide endpoint types, PBX, port count, fax use, patching, rack, sites and required quantity.
Retain up to 32 compatible analogue endpoints in a SIP migration.
Separate compatible services and routing policies across the gateway.
Address each analogue endpoint individually in a supported design.
Connect the high-density gateway through one Gigabit Ethernet port.
Support validated Fax-over-IP applications and G.711 pass-through.
Use secure boot, unique certificate, random default password and dual firmware images.
Best for: hotels, healthcare, education, campuses and migration projects retaining up to 32 compatible analogue endpoints.
| DigiPhone SKU | GXW4232V2 |
|---|---|
| Product type | High-density FXS analogue VoIP gateway |
| Generation | GXW4200 Series v2 |
| FXS ports | 32 |
| Telephone interfaces | 32 FXS ports; confirm RJ11/Telco patching against delivered stock |
| Network | 1 × 10/100/1000 Mbps Gigabit RJ45 |
| Display | 132 × 48 backlit graphic LCD |
| SIP profiles | 4 per system |
| SIP accounts | Independent account per telephone port |
| Voice codecs | Opus, G.722, G.711, G.723.1, G.726, G.729A/B and iLBC |
| Fax | T.38 and G.711 pass-through |
| Conference | 3-way per port |
| Provisioning | TFTP, HTTP/HTTPS, FTP/FTPS and TR-069 |
| Security | SRTP, TLS/SIPS, HTTPS, secure boot, unique certificate, random default password and dual firmware images |
| Power | 12V DC/5A, maximum 60W; universal AC input supply |
| Mounting | Desktop and 1U rack mount |
| Manufacturer warranty | 1-year Grandstream manufacturer warranty |
Compatibility note: Confirm GXW4232V2 generation, FXS requirement, connector and patching design, REN, cable distance, PBX, fax, emergency calling, power, firmware and lifecycle support.
| SKU | GXW4232V2 |
| Barcode # | 6947273704379 |
| Brand | GRANDSTREAM |
| Shipping Weight | 3.7600kg |
This DigiPhone listing is supplied as an Australian version and is covered by a one-year Grandstream manufacturer warranty in Australia, subject to Grandstreams terms for this exact product. Warranty service is subject to the manufacturers terms and proof-of-purchase requirements.
Your rights under this warranty are in addition to rights available under the Australian Consumer Law. Keep your DigiPhone invoice and product serial number for any claim.
Bulk and project support: For fleet deployments, spare units or warranty planning, contact DigiPhone with the SKU and required quantity.
Grandstream • SKU GXW4232V2
A 32-port high-density FXS gateway for retaining compatible analogue phones, fax machines and legacy PBX devices on a SIP network.
The GXW4232V2 is a 32-port version 2 high-density FXS gateway for building a hybrid SIP and analogue telephone environment. It provides 32 FXS ports; confirm RJ11/Telco patching against delivered stock, one Gigabit Ethernet port, four SIP server profiles, an independent SIP account per telephone port, T.38 fax and three-way conferencing per port. Version 2 adds Opus and G.722 wideband audio, secure boot, a unique device certificate, random default password and dual firmware images.
Quick answer: Choose GXW4232V2 when the project must connect 32 analogue phones or fax devices as FXS extensions to a compatible SIP platform. Do not use it for incoming PSTN/FXO trunk lines.
Connect up to 32 supported analogue endpoints while moving call control to SIP.
Use an independent SIP account per FXS port across four server profiles.
Deploy the 1U gateway with Gigabit Ethernet, wideband codecs and stronger security.
A quick fit check for Australian businesses comparing equipment for users, rooms, sites or wider projects.
| Exact model | GXW4232V2 |
|---|---|
| Generation | GXW4200 v2 |
| FXS capacity | 32 ports |
| Telephone connectors | 32 FXS ports; confirm RJ11/Telco patching against delivered stock |
| Network | 1 × 10/100/1000 Mbps Gigabit RJ45 |
| Power | 12V DC/5A, maximum 60W |
It connects up to 32 compatible analogue phones, fax machines or PBX devices as FXS extensions to a SIP network.
No. It provides FXS ports for analogue endpoints. Use an FXO gateway for incoming analogue trunk lines.
It supports four SIP server profiles with an independent SIP account for each telephone port.
Yes. It has one auto-sensing 10/100/1000 Mbps RJ45 network port.
Yes. It supports T.38 Fax-over-IP and G.711 fax pass-through, subject to end-to-end compatibility.
Grandstream lists simultaneous three-way voice conferencing per port.
Version 2 adds Opus and G.722 wideband audio plus secure boot, a unique device certificate, random default password and dual firmware images.
Yes. Provide endpoint types, PBX, port count, fax use, patching, rack, sites and required quantity.
This DigiPhone listing is supplied as an Australian version and is covered by a one-year Grandstream manufacturer warranty in Australia, subject to Grandstreams terms for this exact product. Warranty service is subject to the manufacturers terms and proof-of-purchase requirements.
Your rights under this warranty are in addition to rights available under the Australian Consumer Law. Keep your DigiPhone invoice and product serial number for any claim.
Bulk and project support: For fleet deployments, spare units or warranty planning, contact DigiPhone with the SKU and required quantity.
Retain up to 32 compatible analogue endpoints in a SIP migration.
Separate compatible services and routing policies across the gateway.
Address each analogue endpoint individually in a supported design.
Connect the high-density gateway through one Gigabit Ethernet port.
Support validated Fax-over-IP applications and G.711 pass-through.
Use secure boot, unique certificate, random default password and dual firmware images.
Best for: hotels, healthcare, education, campuses and migration projects retaining up to 32 compatible analogue endpoints.
| DigiPhone SKU | GXW4232V2 |
|---|---|
| Product type | High-density FXS analogue VoIP gateway |
| Generation | GXW4200 Series v2 |
| FXS ports | 32 |
| Telephone interfaces | 32 FXS ports; confirm RJ11/Telco patching against delivered stock |
| Network | 1 × 10/100/1000 Mbps Gigabit RJ45 |
| Display | 132 × 48 backlit graphic LCD |
| SIP profiles | 4 per system |
| SIP accounts | Independent account per telephone port |
| Voice codecs | Opus, G.722, G.711, G.723.1, G.726, G.729A/B and iLBC |
| Fax | T.38 and G.711 pass-through |
| Conference | 3-way per port |
| Provisioning | TFTP, HTTP/HTTPS, FTP/FTPS and TR-069 |
| Security | SRTP, TLS/SIPS, HTTPS, secure boot, unique certificate, random default password and dual firmware images |
| Power | 12V DC/5A, maximum 60W; universal AC input supply |
| Mounting | Desktop and 1U rack mount |
| Manufacturer warranty | 1-year Grandstream manufacturer warranty |
Compatibility note: Confirm GXW4232V2 generation, FXS requirement, connector and patching design, REN, cable distance, PBX, fax, emergency calling, power, firmware and lifecycle support.
| SKU | GXW4232V2 |
| Barcode # | 6947273704379 |
| Brand | GRANDSTREAM |
| Shipping Weight | 3.7600kg |
