Automated PBX failover
Transfer connected system interfaces to a matching standby UCM6510 when the active unit fails.
Grandstream HA100 High Availability Controller for Two UCM6510 PBXs
RRP $680.90
49% OFF
Not sure what you need?
Read our complete guide.
Not sure what you need?
Read our complete guide.
RRP $680.90
49% OFF

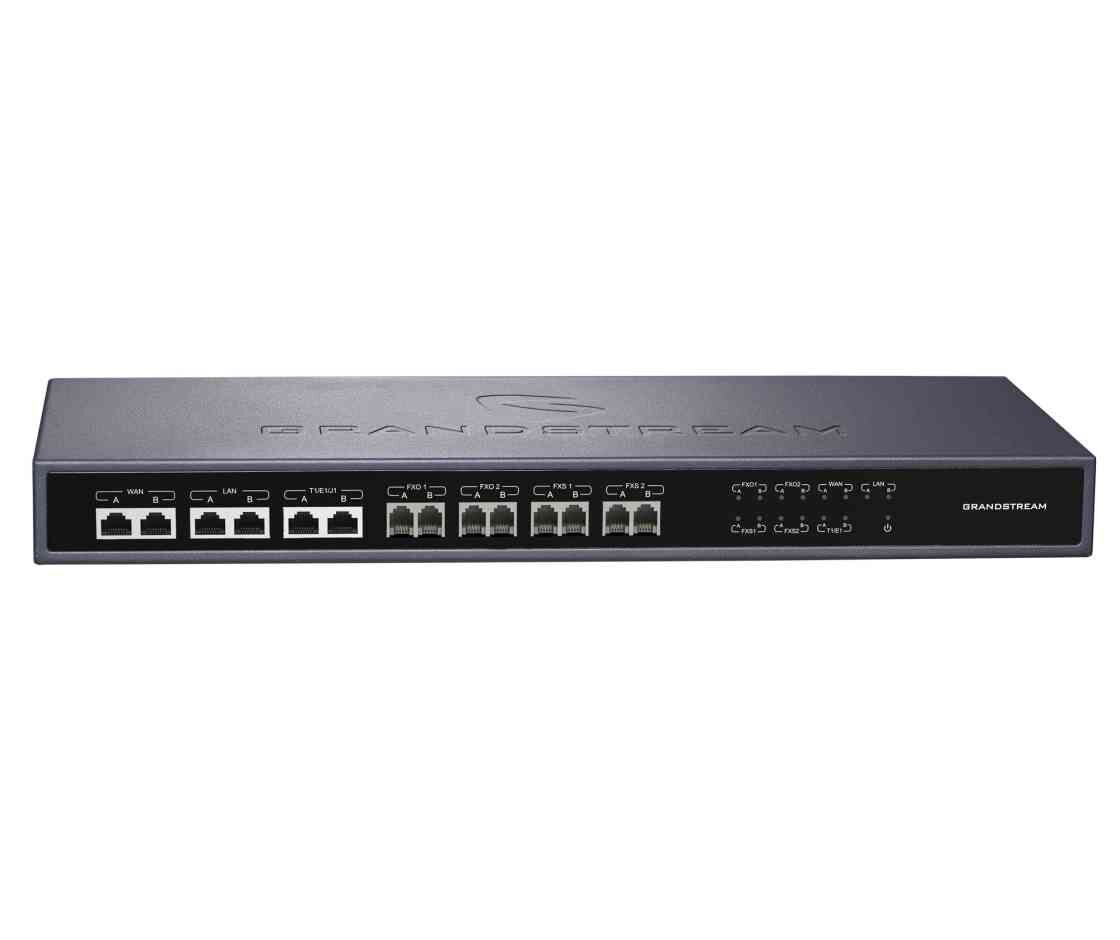

Grandstream • SKU HA100
An automated failover controller designed to connect and monitor two matching Grandstream UCM6510 IP PBXs.
The HA100 is an automated failover controller for a pair of matching Grandstream UCM6510 IP PBXs. It monitors the primary and secondary systems and can switch telecom lines, network connections and auxiliary links to the standby unit when a failure is detected. Grandstream states an overall system switch time of approximately 10 to 50 seconds, depending on the number of registered SIP endpoints.
Quick answer: Choose HA100 only for a validated two-UCM6510 high-availability design. The controller does not include the two PBXs and is not specified for the UCM6300 family.
Transfer connected system interfaces to a matching standby UCM6510 when the active unit fails.
Use up to 14 front-panel LEDs to monitor connected interface and failover status.
Build a controlled legacy UCM6510 resilience design with matched configuration and wiring.
A quick fit check for Australian businesses comparing equipment for users, rooms, sites or wider projects.
| Exact model | HA100 |
|---|---|
| Required PBXs | 2 × matching UCM6510 units, sold separately |
| Failover time | Approximately 1050 seconds, endpoint dependent |
| Indicators | Up to 14 LEDs |
| Network behaviour | Includes gratuitous ARP during failover |
| Scope | Controller only; UCM6510 PBXs not included |
It monitors two matching UCM6510 PBXs and switches connected system interfaces to the standby unit after a detected failure.
No. The HA100 is the controller only; both matching UCM6510 systems are sold separately.
Grandstream specifies the HA100 for UCM6510. Do not assume UCM6300 compatibility.
Grandstream states approximately 10 to 50 seconds depending on the number of registered SIP endpoints.
It is designed to switch connected telecom lines, network and auxiliary interfaces in the supported UCM6510 design.
The HA100 provides up to 14 LEDs for interface and system status.
Yes. A successful high-availability design requires matched firmware, configuration and connections.
Yes. Provide both PBX models, firmware, trunks, extensions, network diagram and continuity objectives.
Monitor the active and standby UCM6510 systems in a supported configuration.
Move connected telecom, network and auxiliary paths to the standby system.
Plan for the published 1050 second switch interval based on system scale.
View connected interface and failover state from the front panel.
Help update network reachability during the supported failover sequence.
Build the solution around two separately supplied, matching UCM6510 PBXs.
Best for: existing UCM6510 installations that require a planned, tested and documented hardware failover design.
| DigiPhone SKU | HA100 |
|---|---|
| Product type | High-availability failover controller |
| Verified PBX | Grandstream UCM6510 |
| PBX quantity required | 2 matching units, sold separately |
| Failover time | Approximately 1050 seconds, depending on registered SIP endpoints |
| Indicators | Up to 14 LEDs |
| Network failover | Gratuitous ARP supported |
| Interfaces | Telecom, network and auxiliary connections for supported UCM6510 design |
| Lifecycle | Legacy UCM6510 accessory; confirm current support |
| Package scope | HA100 controller; PBXs not included |
| Manufacturer warranty | 1-year Grandstream manufacturer warranty |
Compatibility note: Confirm two matching UCM6510 PBXs, firmware, configuration, trunks, network, auxiliary wiring, endpoints, testing and lifecycle.
| SKU | HA100 |
| Barcode # | 6947273702382 |
| Brand | GRANDSTREAM |
| Shipping Weight | 3.1000kg |
This DigiPhone listing is supplied as an Australian version and is covered by a one-year Grandstream manufacturer warranty in Australia, subject to Grandstreams terms for this exact product. Warranty service is subject to the manufacturers terms and proof-of-purchase requirements.
Your rights under this warranty are in addition to rights available under the Australian Consumer Law. Keep your DigiPhone invoice and product serial number for any claim.
Bulk and project support: For fleet deployments, spare units or warranty planning, contact DigiPhone with the SKU and required quantity.
